Cell: smallpower | © Simon Moore, 1997 | |||||||||||||||
Used Bycontdata16G_v1contdata4_v2 contdyndata16G_v1 contdyndata4_v1 |
Subcells UsedNone |

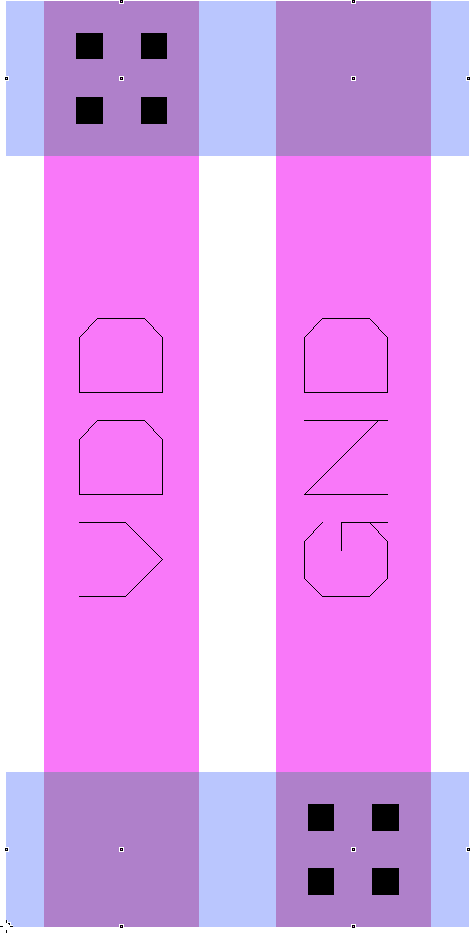

NotesA trivial cell for distributing power coming in over metal 2 wires and going to metal 1 wires. |
Key
|
||||||||||||||
|
|
