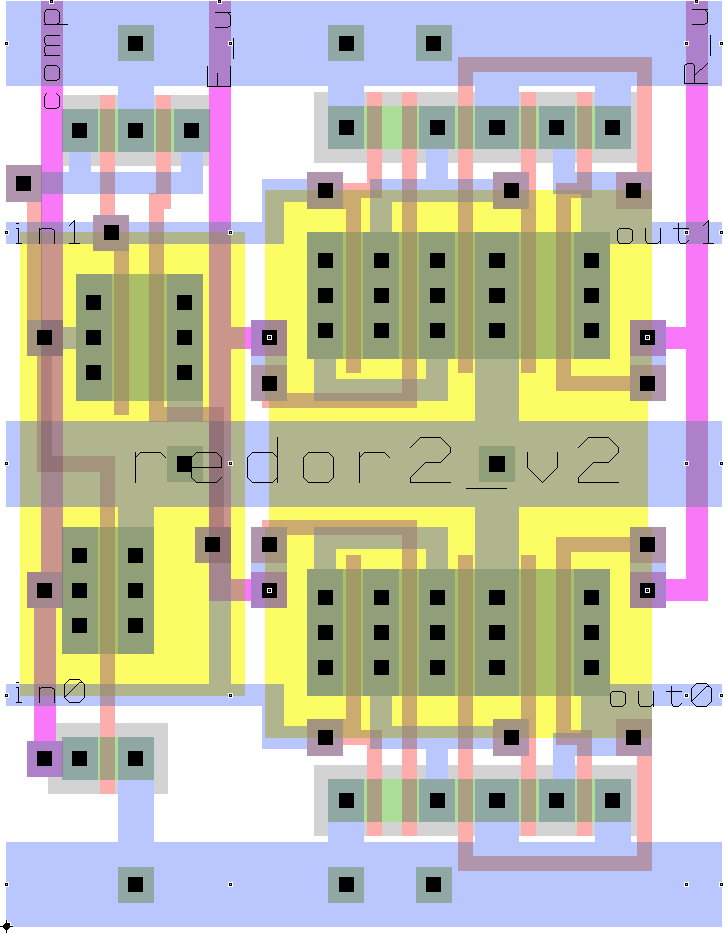

Cell: redor2_v2 © Simon Moore, 1997

Used By

dyndata4
gendata4

Subcells Used

2 x redff_v4

Notes

Two RED flip-flops with OR gate (NOR + inverter) for completion detection. Control runs vertically in metal 2 and data horizontally in metal 1.

Key

metal 2
metal 1
polysilicon
via or contact
N+
P+
N well
