LiteLab Platform

LiteLab is a light-weight platform specialized for large-scale networking experiments. It takes advantages of overlay network techniques and power of computing cluster, providing a flexible experiment platform with many uses. LiteLab helps researchers reduce the experiment complexity and speeds up experiment life-cycle, and at the same time, provides satisfying accuracy.

Download technical report: "LiteLab: Efficient Large-scale Network Experiments"

Download source code: LiteLab code @ Github


LiteLab can easily scale up the experiment to tens of thousands of nodes given any topology. Configuration and setup are simple.

View details »


The simulated router is highly customizable and extensible. Plugging in user-defined modules requires minimum overheads.

View details »


LiteLab utilizes and allocates the resources wisely based on the current load on the computing cluster.

View details »


The goal of LiteLab is to provide an easy to use, fully-fledged network experiment platform. Figure 1 shows the general system architecture. LiteLab consists of two subsystems: Agent Subsystem and Overlay Subsystem.

  • Agent Subsystem provides a stable and uniform experiment infrastructure. It hides the communication complexity, resource failures and other underlying details from the Overlay Subsystem. It is responsible for managing physical nodes, allocating resources, administrating jobs, monitoring experiments and collecting results.
  • Overlay Subsystem constructs an experiment overlay with the resources from Agent Subsystem. One overlay instance corresponds to a job, therefore LiteLab can have multiple over- lay instances running in parallel at the same time.

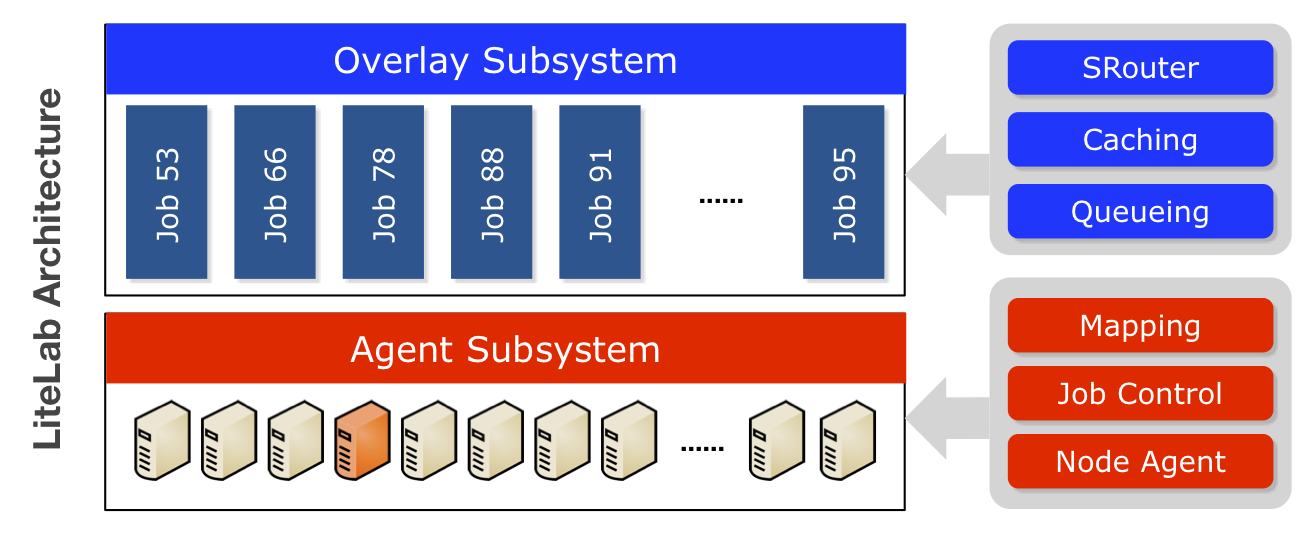

Figure 1: LiteLab architecture

Software Simulated Router

SRouter is the most critical component in Overlay Subsystem. It is a software abstraction of a realistic router. Due to its light-weight, multiple SRouters can run on one node. Users can configure many parameters of SRouters, e.g., link properties (delay, loss rate, bandwidth), queue size, queuing policy, and so on. Figure 2 shows the internal mechanism of SRouter.

Figure 2: SRouter internal mechanism

LiteLab is highly customizable and extensible. It is very simple to plug in user-defined modules without modifying the code and substitute default modules. SRouter can also be used as end-system instead of doing simple routing task. When used as end-system, user-implemented applications can be run on top of it.

Smart Resources Management

LiteLab uses Mapping module to map virtual resources to physical resources. The goal is to maximize resource utilization, and also to guarantee no violation of physical capacity. Four metrics are taken into account: CPU load, network traffic, memory usage and use of pseudo-terminal devices. The core of mapping module is an LP solver. As the figure 3 shows, Mapping module takes node states and job description as inputs, and outputs the optimal deployment matrix.

Figure 3: An LP solver for resources allocation
