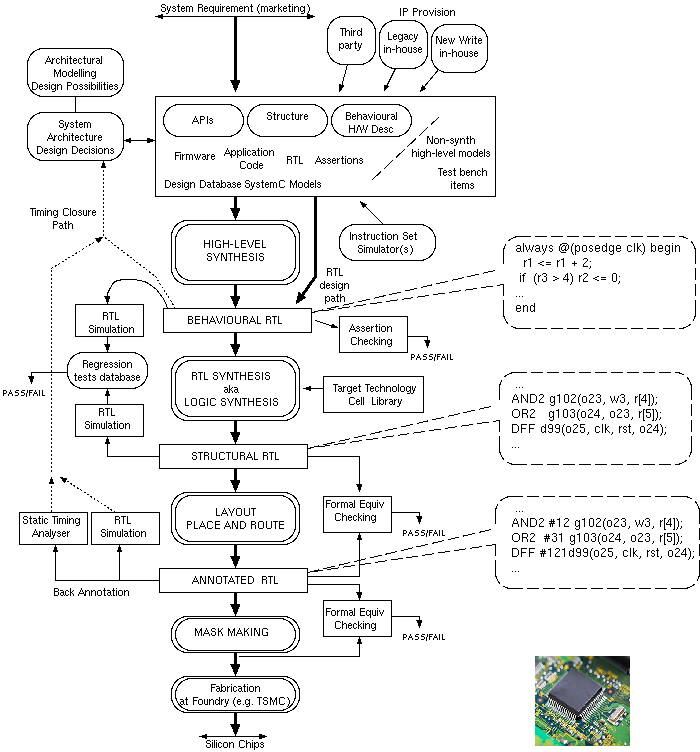

ASIC Design Flow Diagram

Design and Manufacturing Flow for SoC.
ASIC/SoC flow that leads from design capture to ASIC fabrication.

This might take six months. The FPGA equivalent can be done in half a day!
