UART Device

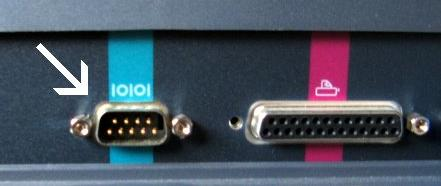

Typical Serial and Parallel Ports of 20th Century
Typical Serial and Parallel Ports of 20th Century

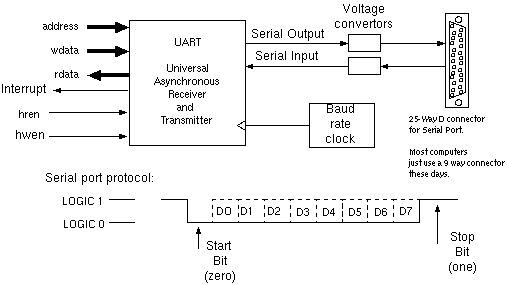

Typical Configuration of a Serial Port with UART

The RS-232 serial port was widely used in the 20th century for character I/O devices (teletype, printer, dumb terminal).

A pair of simplex channels (output and input) make it full duplex.

Additional wires are sometimes used for hardware flow control, or a software Xon/Xoff protocol can be used.

Baud rate and number of bits per word must be pre-agreed.

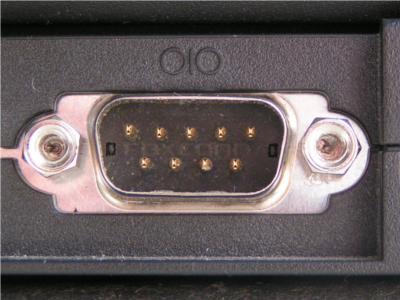

Serial Port Connector (9 pin instead of original 25 pin).

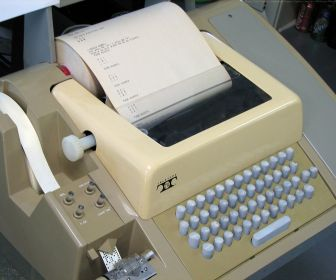

Teletype/teleprinter: These devices were almost entirely mechanical with the electric circuit being little more than one switch activated by cams for transmit and one solenoid for receive.
Teletype/teleprinter: These devices were almost entirely mechanical with the electric circuit being little more than one switch activated by cams for transmit and one solenoid for receive.
