When more than one client wants to use a resource at once we have contention.

Real queues are used in hardware, either in FIFO memories or by flow control applying backpressure on the source to stall it until the contended resource is available. An arbiter allocates a resource to one client at a time.

Contention like this can be modelled using real or virtual queues:

- In a low-level model, the real queues are modelled in detail.
- A TLM model may queue the transactions, thereby blocking the client's thread until the transaction can be served.
- Alternatively, the transactions can be run straightaway and the estimated delay of a virtual queue can be added to the client's delay account.

Delay estimates can be based on dynamic measurements of utilisation at the contention point, in terms of transactions per millisecond and a suitable formula, such as 1/(1-p) that models the queuing delay in terms of the utilisation.

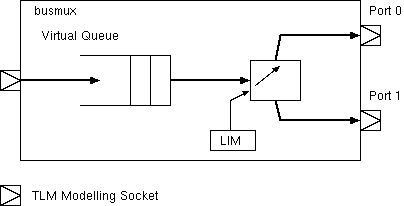

// A simple bus demultiplexor: forwards transaction to one of two destinations: busmux::write(u32_t A, u32_t D, sc_time &delay) { // Do actual work if (A >= LIM) port1.write(A-LIM, D, delay) else port0.write(A, D, delay); // Measure utilisation (time for the last 100 transactions) if (++opcount == 100) { sc_time delta = sc_time_stamp() - last_measure_time; local_processing_delay = delay_formula(delta, opcount); // e.g. 1 + 1/(1-p) nanoseconds logging.log(100, delta); // record utilisation last_measure_time = sc_time_stamp(); opcount = 0; } // Add estimated (virtual) queuing penalty delay += local_processing_delay; }

In the above, a delay formula function knows how many bus cycles per unit time can be handled and hence can compute and record the utilisation and queuing delays.

The value `p' is the utilisation in the range 0 to 1. From queuing theory, with random arrivals, the queuing delay goes to infinity following a 1/(1-p) response as p approaches unity. For uniform arrival and service times, the queuing delay goes sharply to infinity at unity.
