Test Program Generator Tool

Lectured if time permits:

A test program generator works out a short sequence of tests that will reveal `stuck-at' and other faults in a subsystem.

The wafer (six to ten inches diameter) is diced into chips (1cm on a side or so).

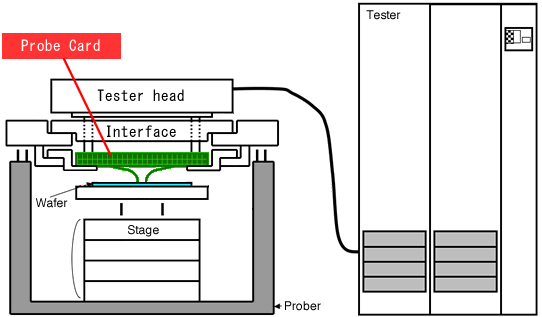

General setup with wafer probe testing machine.

Probe needles just visible inside testing load card.

Drawing of the test load card.
