Visualizing FPS Timing
Pink and blue lines of Frame rate [fps]
Pink Line: Video FPS — Calculated from the video file's internal timestamps. It represents the intended playback speed as dictated by the video stream itself.
Blue Line: Display FPS — Calculated from physical screen flips. It represents the actual frame rate presented on the monitor. If the blue line drops below the pink line, frames are being dropped or displayed slower than intended.
Baseline Comparison
Reference

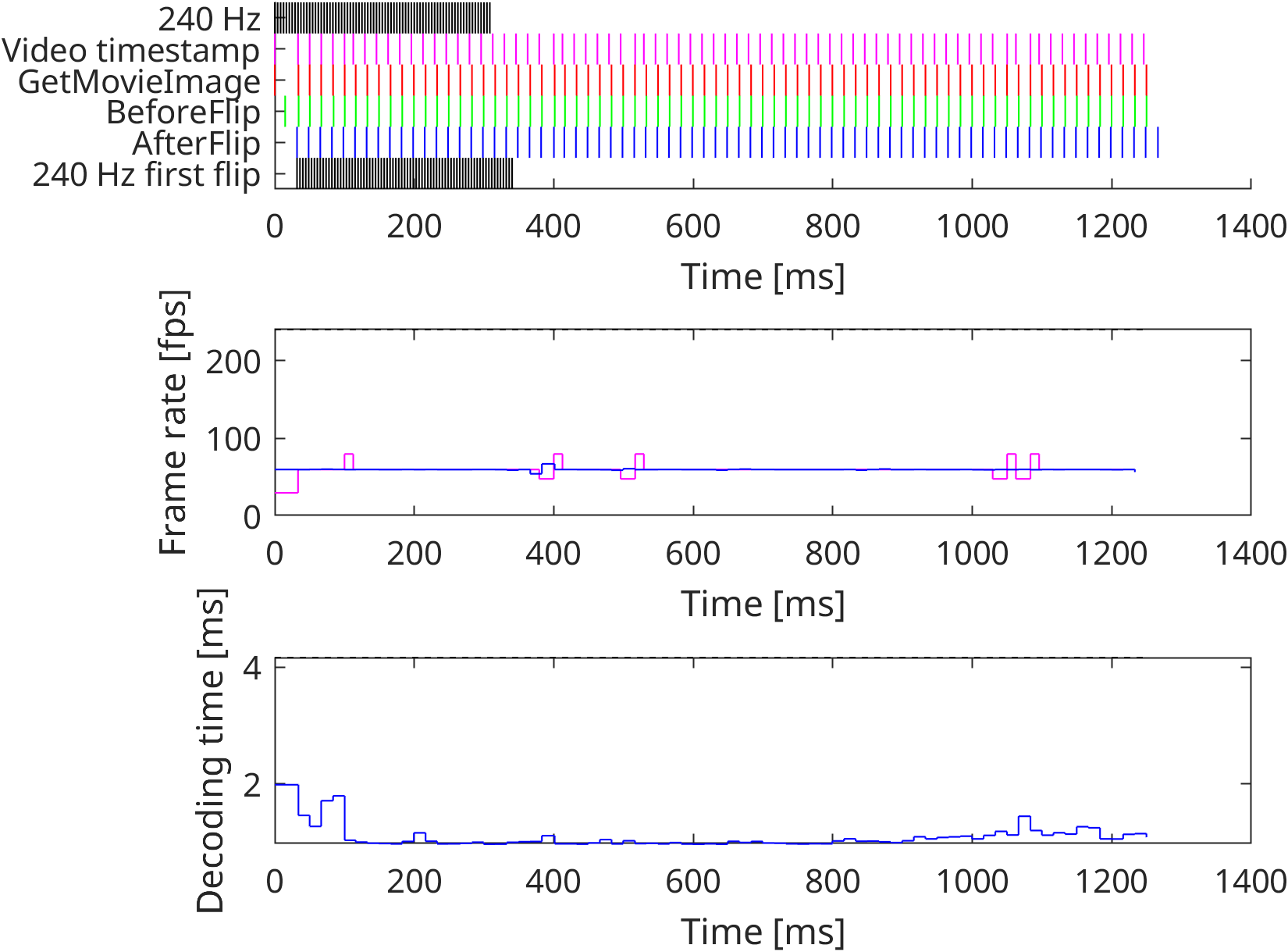

240 FPS Baseline
Target FPS
240
Interval
4.17ms
Landscape Scene Analysis

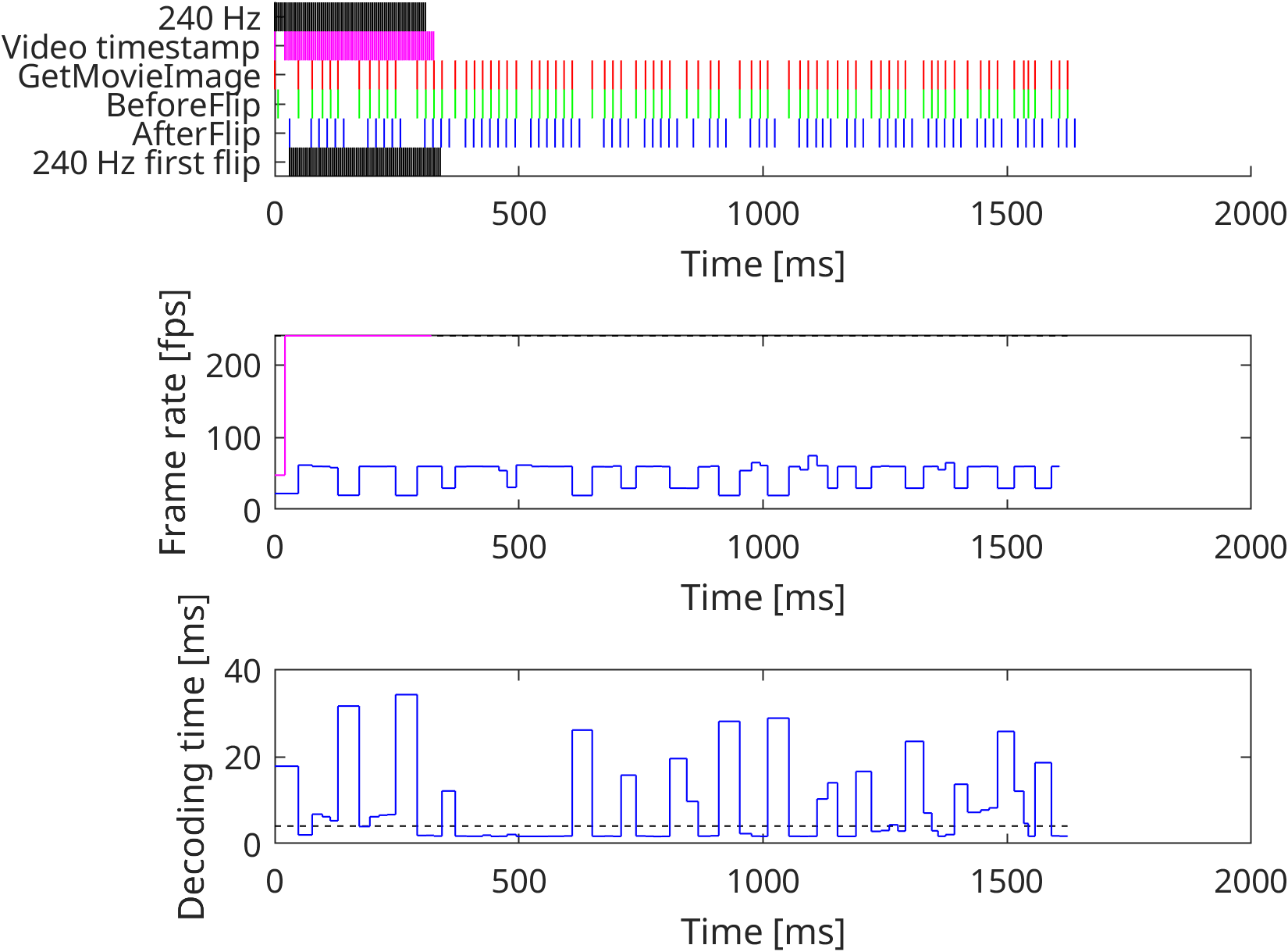

Landscape Configuration B
2 videos: playing slowly
2 Videos

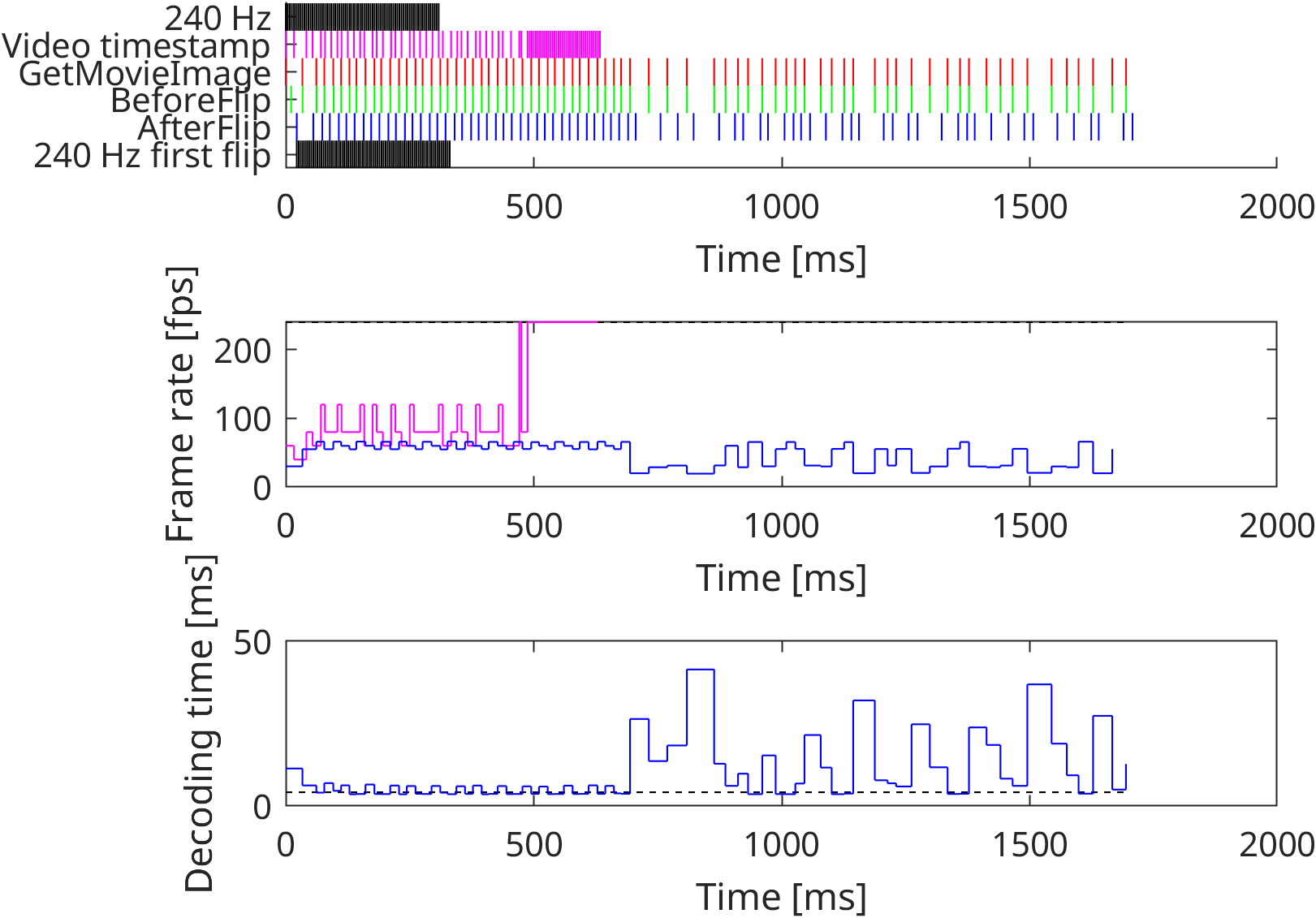

Landscape Configuration C
3 Videos: playing slowly
3 Videos
Zeroday Scene Load Tests

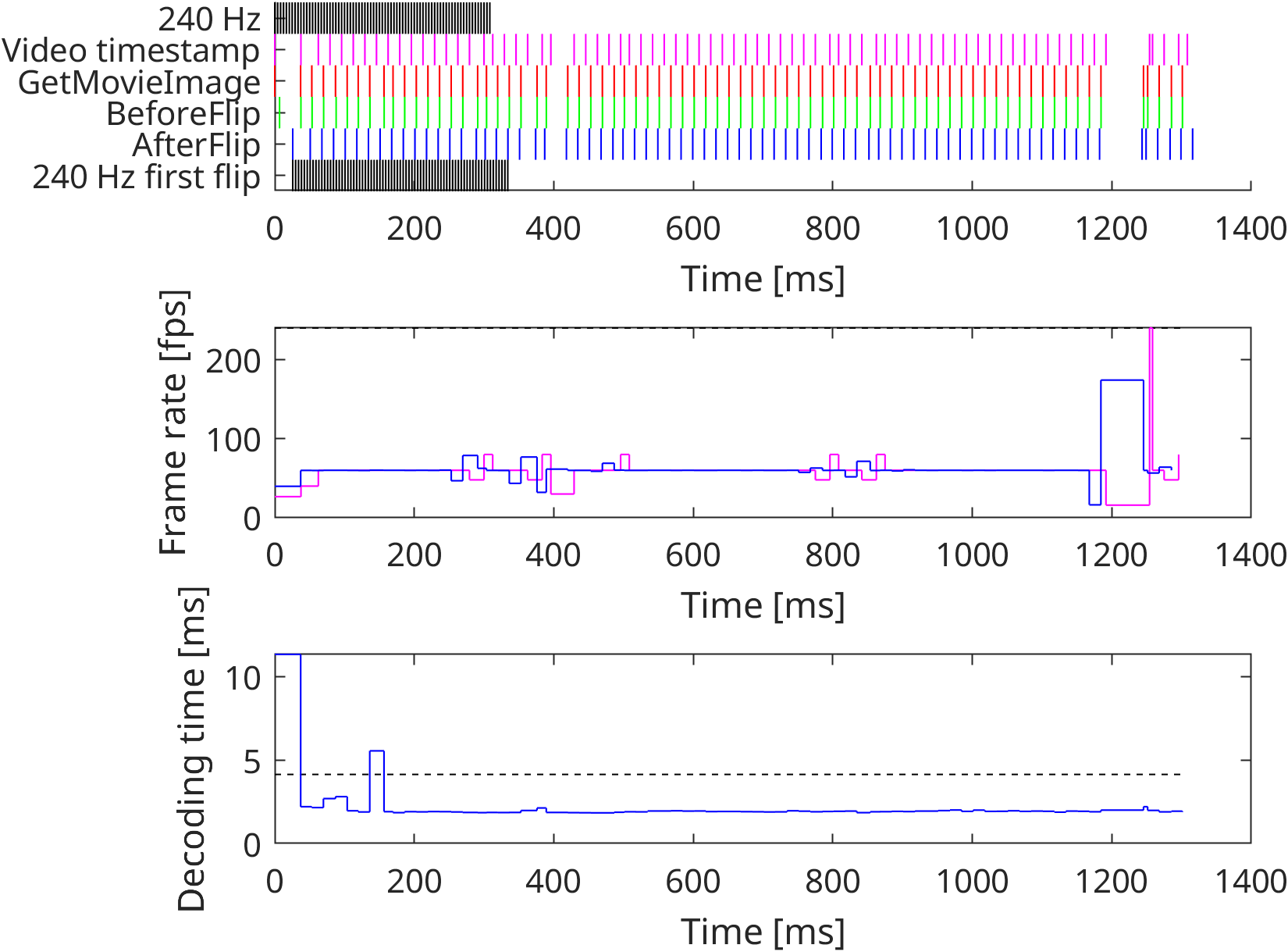

Zeroday Performance (300MB)
2 videos: playing correctly
300MB / 2V

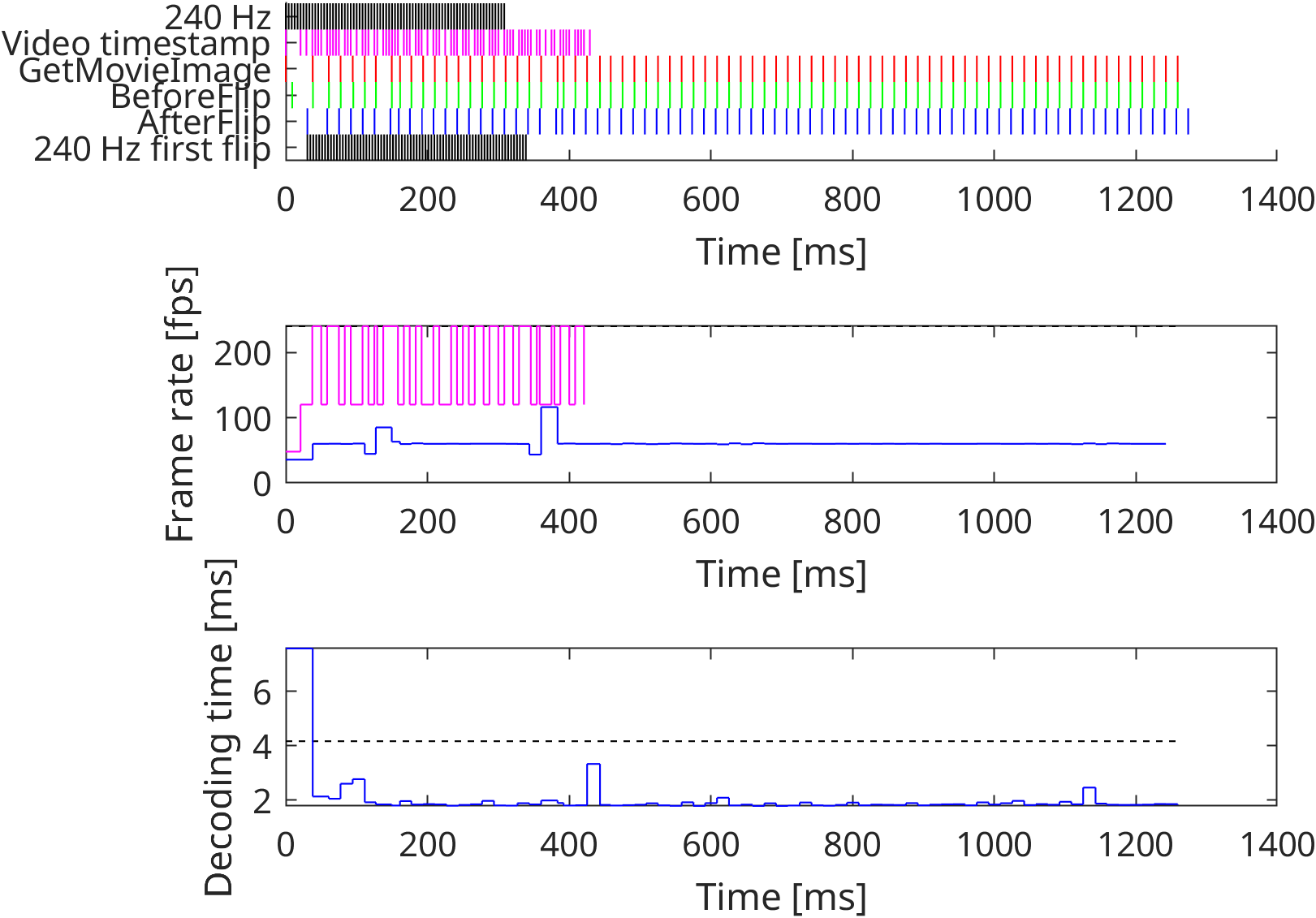

Zeroday Performance (600MB)
2 videos: playing slowly
600MB / 2V

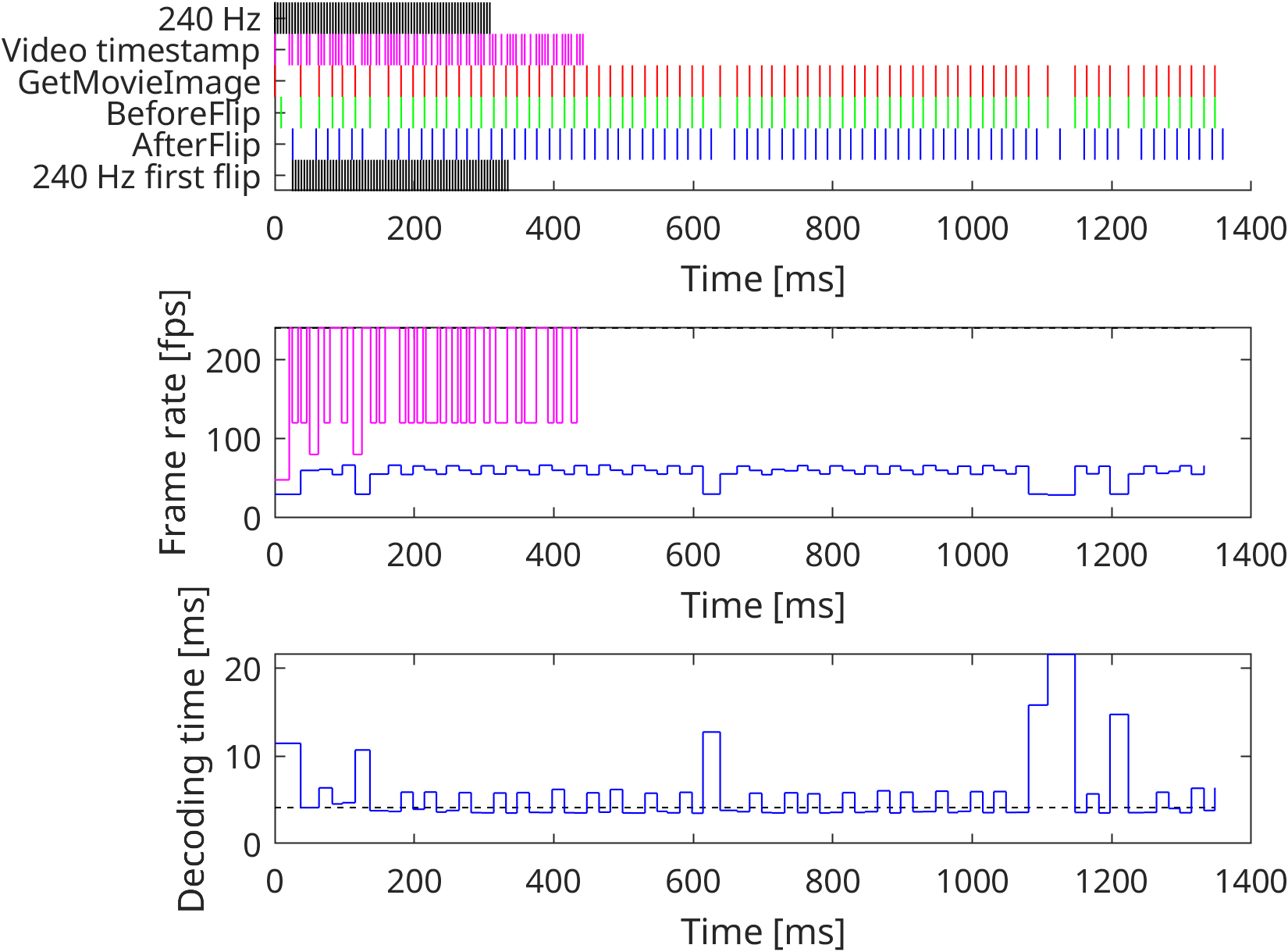

Zeroday Full Stack
2 videos: playing slowly
3 Videos
