BVCI Net-Level Protocol.

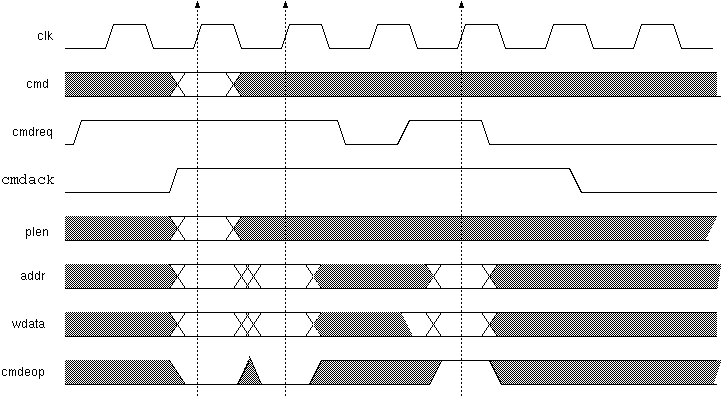

BVCI Protocol, Command Timing Diagram

Operations are qualified with conjunction of req and ack.

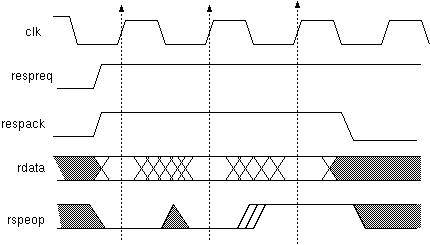

Response and acknowledge cycles maintain respective ordering.

Bursts are common. Successive addressing may be implied.

images/bvciwaveform1.png
