An old partitioning example: An external RS-232/POTS Modem.

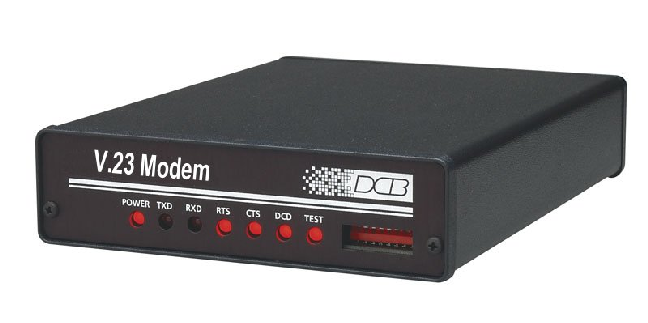

A POTS modem.

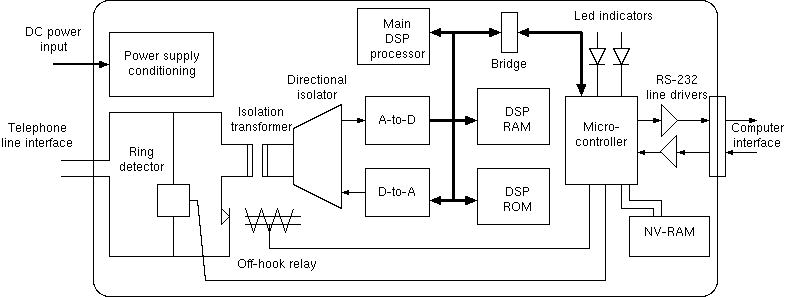

Example of a design partition --- internal structure of the original modem.

PCB of a similar modem - but offchip RAM and ROM for the 80C31 microcontroller.
