Transactor Configurations

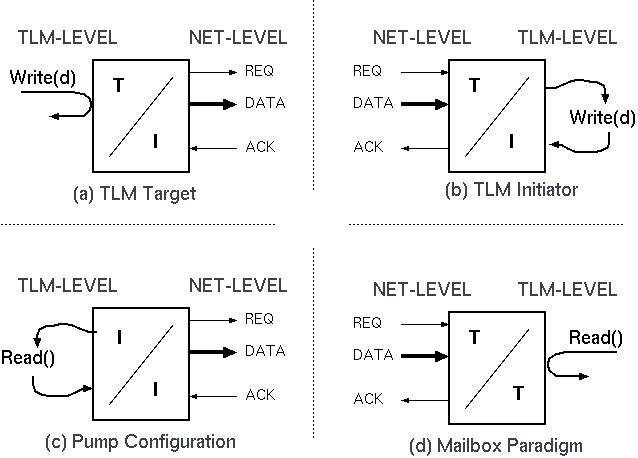

Four possible transactors are envisonable for a single direction of the 4/P handshake and in general.

Consider further: what about a transactor with a `Read()' target TLM port and net-level parallel input?

There are eight simplex configurations but four duplex configurations.
